building a screen door

Remember this post when I talked about building a screen door?

We finisssshhhed….

And I couldn’t love it more.

Jamin did all the cutting. {I’m so proud.}

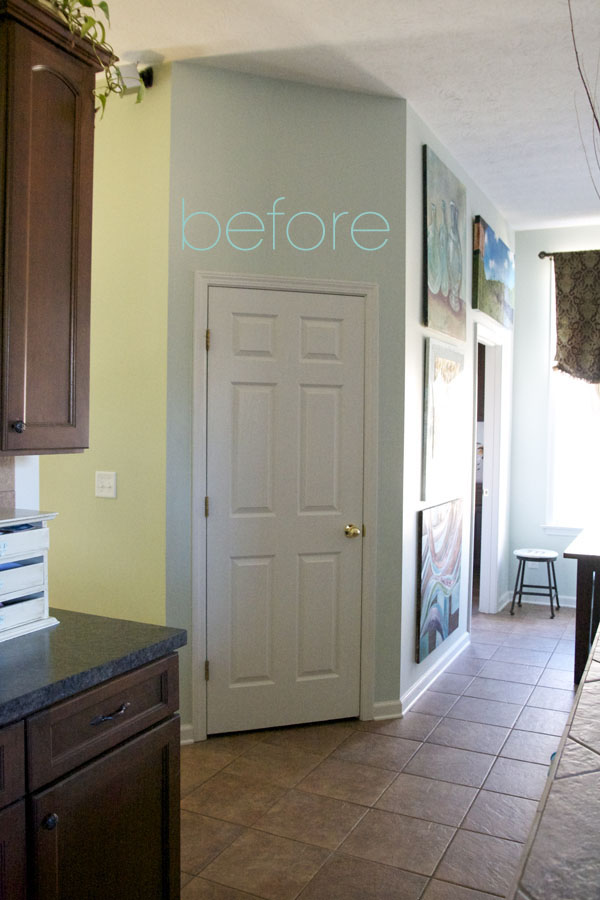

I think it brings some major character to an otherwise overlooked space in a once cookie cutter house.

{more props to Layla for some mad inspiration. ;)}

We wanted to purchase one, but didn’t really see anything that fit our style. Or the weird sizing of this pantry door. We also didn’t want to pay 200 dollars for one. So, we decided to build one. It couldn’t be that hard, right?

Wanna know how we did it? It was actually pretty easy once we got the measurements down.

Our original plans were for an entire screen. And then reality hit, and we realized that with three children five and under…we were doomed in the destruction department. So we decided to give it a little character at the bottom.

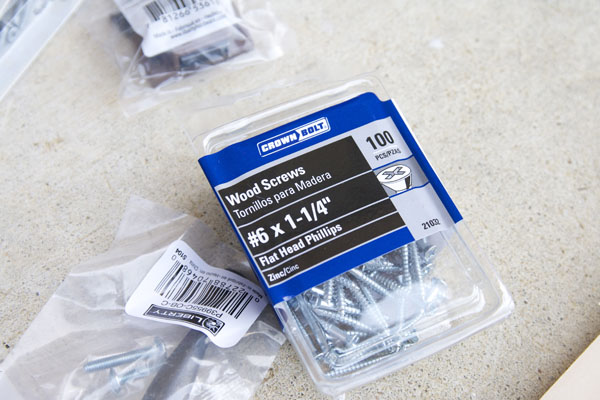

First, we grabbed up 4 boards (1 x 4′s.) And an MDF sheet, (at .25 thickness) cut to 3 @ 9 x 24. We also got some mending plates, flat corner braces, and wood screws. Add in some smaller hinges, trim of your choice, a pull…and you’re ready to go.

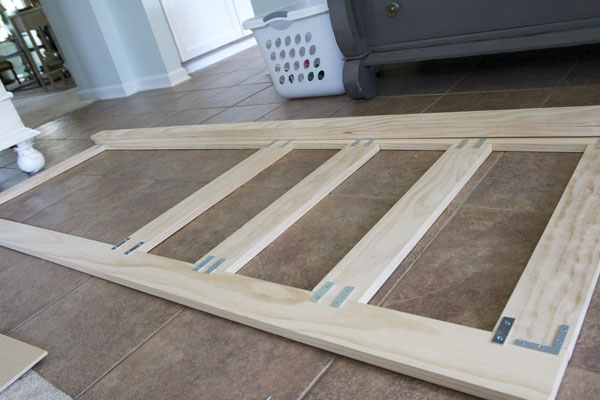

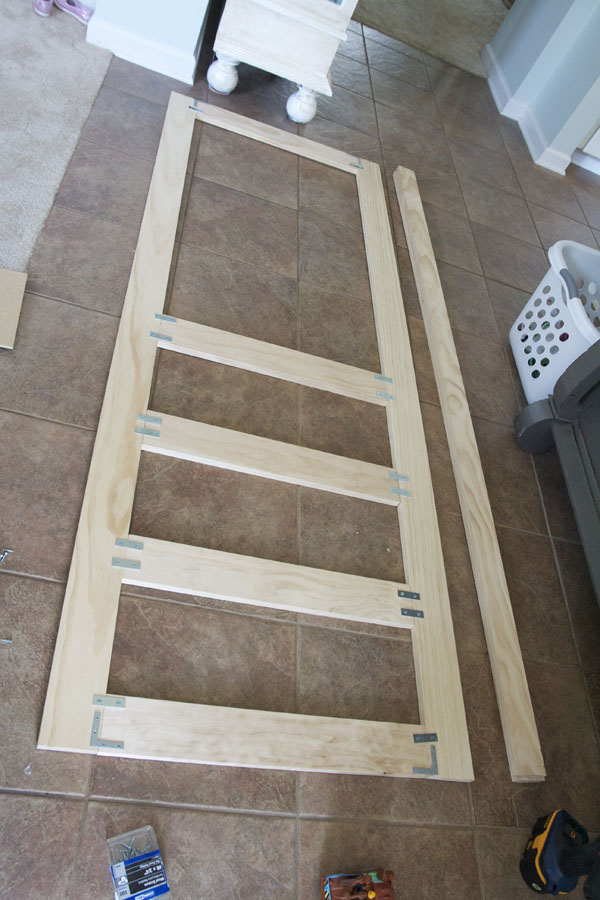

I’ll try not to get all technical with the measurements, because all of that depends on the width of your own door. We may or may not have had this put together, when we realized we did it too wide, and had to start over. MEH. We’ve never built a door before so ya live, ya learn. This is the bare bones of your structure, laid facedown. See how we used the brackets and braces to join them together?

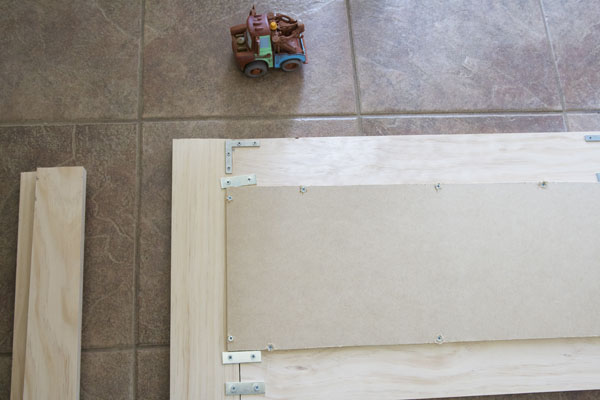

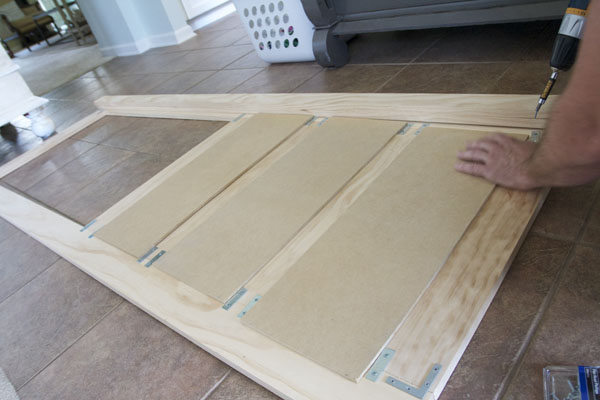

We then joined the MDF to the spaces with screws.

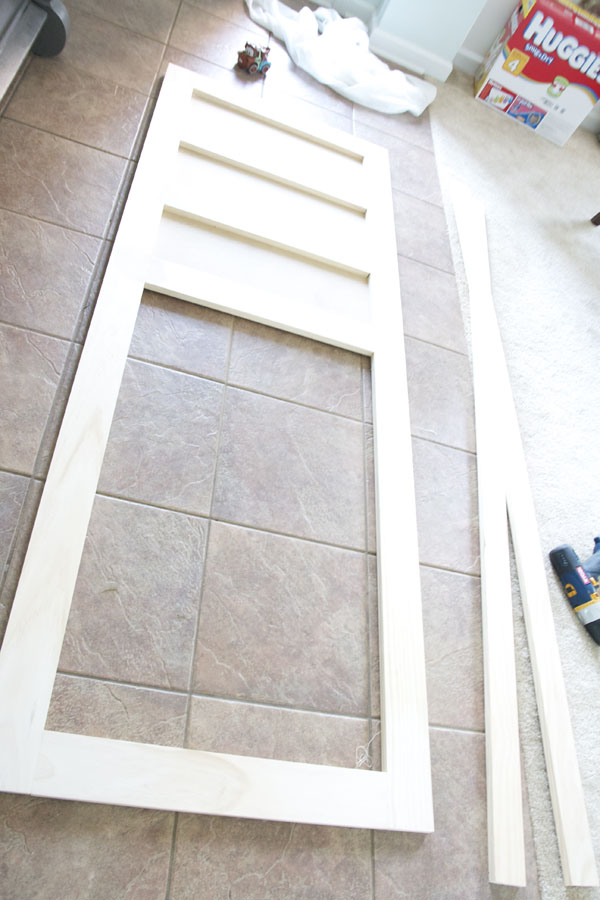

flipped back over, the door looked like this. {Apparently Huggies boxes and Toy Mater Cars are essential to your door construction.}

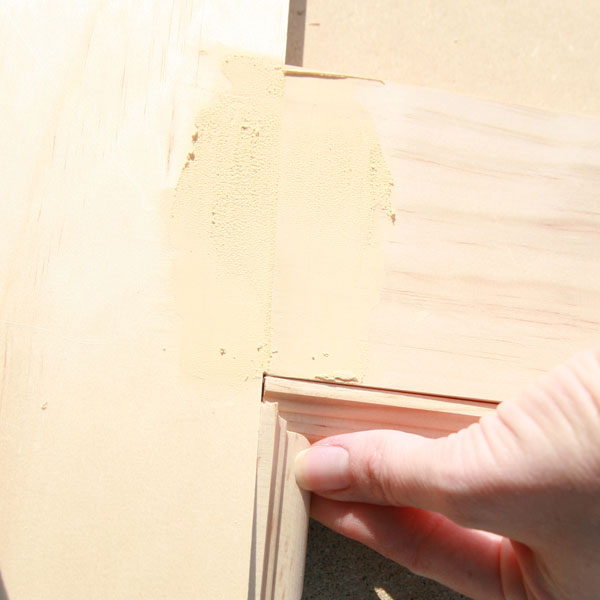

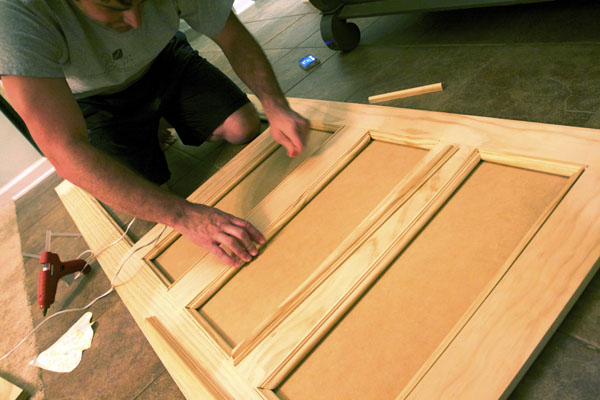

We used wood filler to fill in the gaps between the boards, (once it was dry, we sanded) and then cut the trim to fit. Here’s a little tid bit of cheat: we only cut the side pieces at an angle. We didn’t cut the top and bottom trim at an angle. Then we put all of the pieces of trim, cut to fit, in the insides of the door, and it all fit together quite seamlessly, especially once painted.

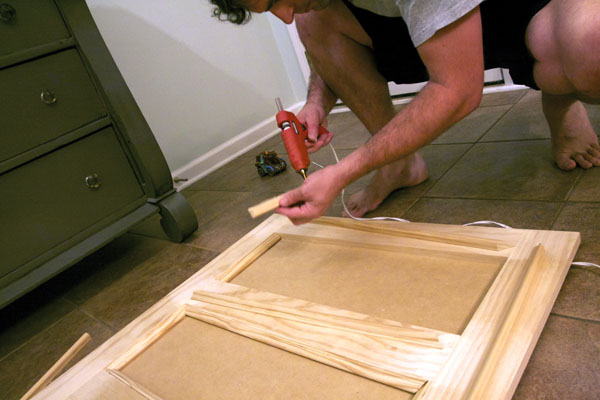

what did we adhere it with?

our handy dandy old trusty: the hot glue gun, of course.

I’m not sure why my hand looks like an alien appendage in this pic, but we’ll just go with it. A little wood filler in some of the corners to smooth it out, and some paint…

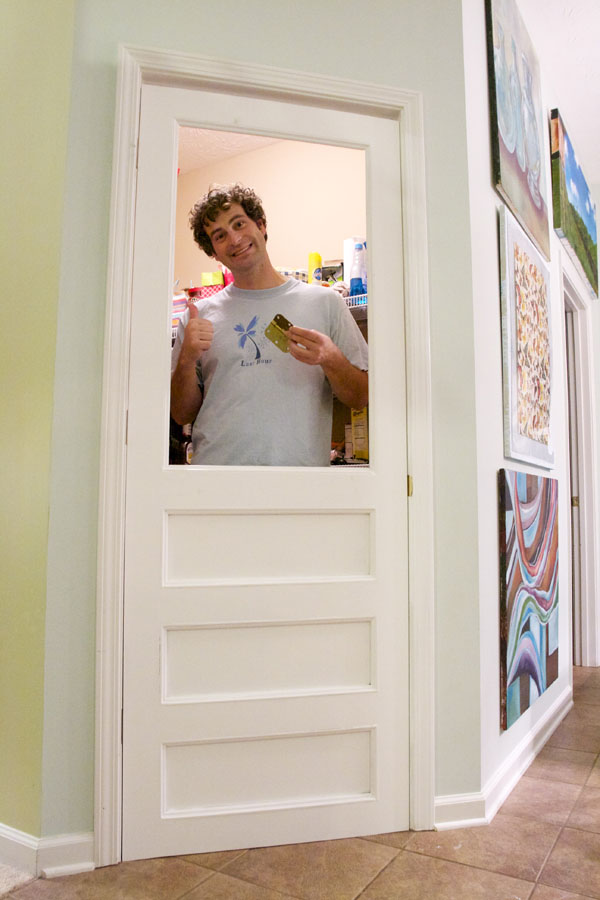

And we had a great little door. We propped it up to see how it was going to fit in the space. Just pretend like you don’t see the junk behind Jamin. It’s life. {one day soon, we shall gut out the existing pantry, paint it a pretty blue, put in nice white wooden shelving, and organize the mess out of it, and it will stay that way for ten seconds. HURRAY!} If Jamin doesn’t break up with me first. ;)

Next, it was time for the screen.

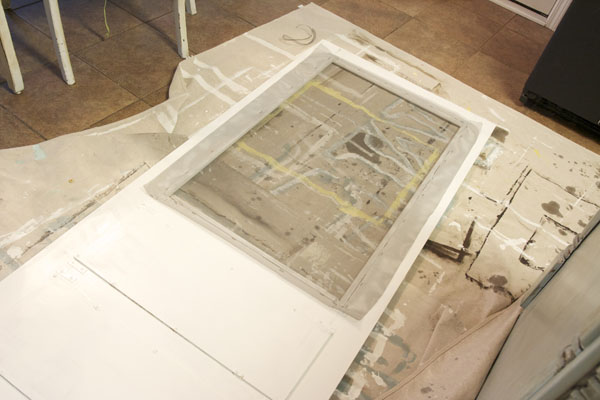

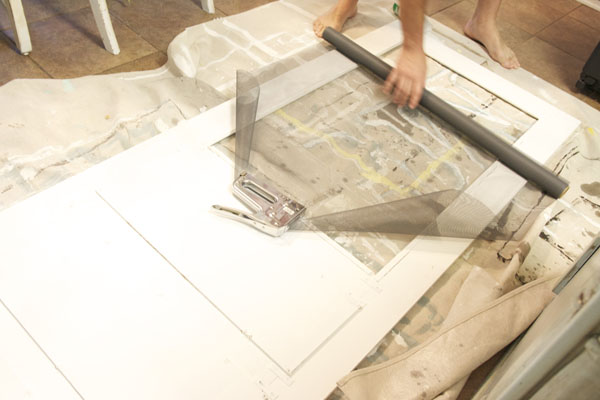

We rolled it out, trimmed it, and used a staple gun to secure it. Now, you may notice that our door is a little rough on the back. If you wanted to make the back of yours pretty, you would simply repeat the first few steps, and join them to the back of your door, complete with more trim if you like. We don’t care that much, for now, and it’s just a pantry door, so the rougher look on the back is fine with us.

We will also be installing one of these, later this week. We didn’t have time to get to it just yet, but I’m super excited about it closing on its own…we have a new rule in our house that our three munchkins are NOT allowed in the pantry to climb on the shelves and fish our their third helping of fruit snacks on their own. Because that’s what they do, and it drives us bonkers. This closing behind us on its own will help with our new house rule. That, and I LOVE the sound a screen door makes.

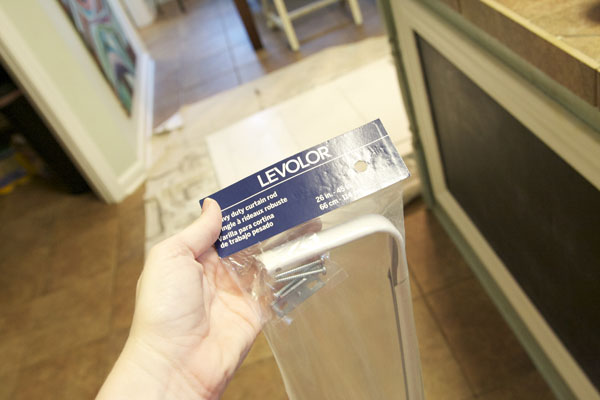

we used this to hang the curtain…

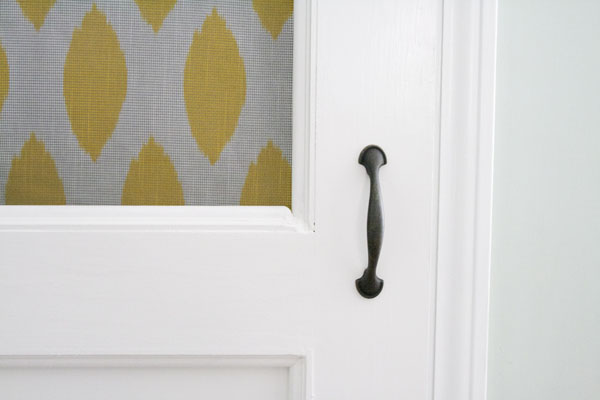

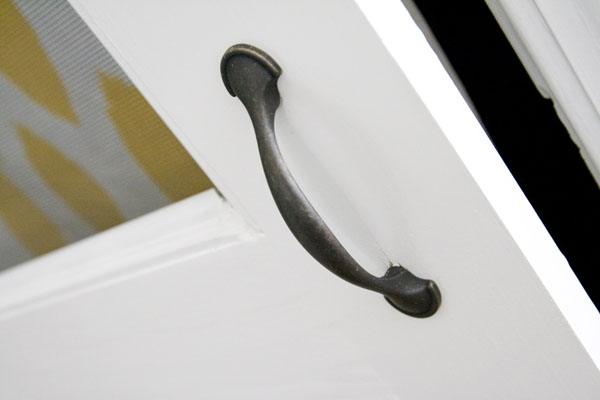

And with a small pocket rod I made at the top, hung it backwards on the rod so that the front would face the outside. We also added the small iron pull, and after actually hanging the door, {which was kind of a feat in itself…}

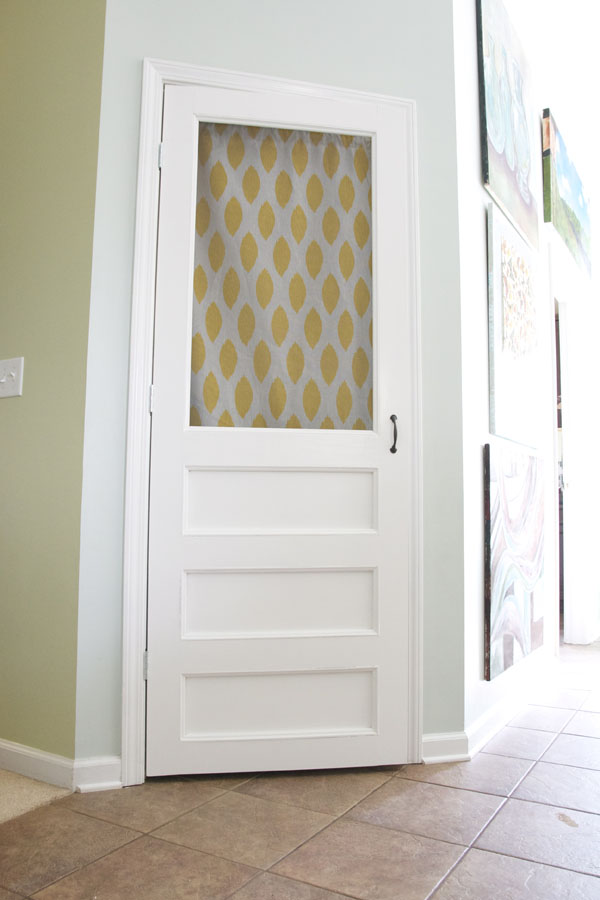

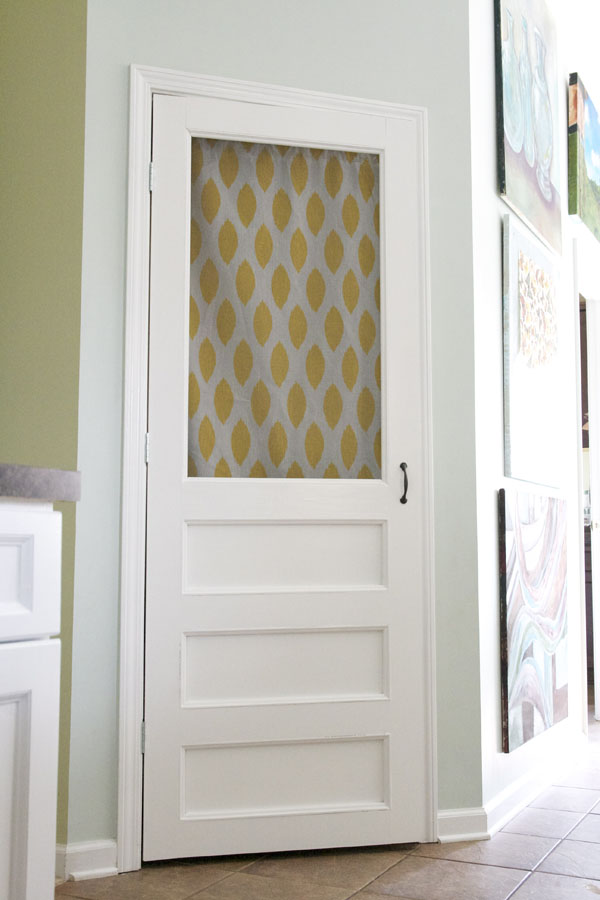

TADA! Totally worth it to make and design my own, to get what we wanted…with a major price difference of about 130 smacks from purchasing one. And there you have it. One of my favorite things about our new kitchen. Which I plan to show you all next week! {squeee! fingers crossed.}
