how to build a pergola

Hey guys, Jamin here again today continuing with our Backyard Bliss series.

before_and_after_porch

{To read any of our DIY projects from this back yard overhaul, be sure to check them all out, here!}

building_a_pergola

Even though it’s the dead of winter, now really is the perfect time to begin thinking about adding a pergola to your back yard. You can start planning and saving now, as spring is right around the corner. ;}

If you remember from before, this is probably our most challenging project yet. Not because it’s difficult in itself, but we definitely had a challenge in the composition of our back yard: a. the concrete for an extension we did a few years earlier was already laid, and b. our roofline was a bit complicated {If you look at our back door, you’ll see there was nowhere for our back left post.} We even consulted an architect friend of ours, as we didn’t want to void our roof warranty or cause damage… or have it fall on us. I had my doubts, but someone who rhymes with Smashley was a little determined to have a pergola gracing her back porch. Once Smashley gets an idea in her head, she doesn’t really stop until we’ve explored every possible avenue.

You’ll definitely want an extra pair of (strong) hands to help you with this one. Enter our friend + favorite person ever, Super Jim. (Smashley calls him Super Jim) He’s kind of an expert via all things construction… our go-to guy with our crazy questions when tackling something new. He was amazing to help us get this thing off the ground, and we can’t thank him enough. Literally.

Before we dive into supplies, remember you may need to make adjustments to board lengths based on the size of your area. Also, even though ours is larger we will work with a 10ft x 10 ft example, this should be the easiest for you to convert lumber lengths to the appropriate size for what you wish to build.

You can use whichever type of lumber you would prefer. This just depends on the look you are going for. Our pergola was made from southern pine. For an unpainted look, try Western Red Cedar.

So let’s dive into the supply list of things you will need.

reciprocating saw


• safety glasses

• post hole diggers

• shovel

• hammer

hammer drill

• masonry bit

circular saw


drill

• drill
spade bit

• tape measure

• level

• Tapcon screws

• post anchor
 (As many as are attached to concrete)

• lag bolts with washers
(4 plus any attached to the concrete)

• socket wrench

• nut driver

• Screws or nails (3 ½ inch)

jigsaw


• ladders

Thompson’s Water Seal wood protector

• (4) 6″ x 6″ posts (height will depend on how you attach them, see below.)

• (12) 2 x 4 x 8 (cheap ones, they will be used for bracing.)

• (4) 2 x 12 x 14

•  2 x 6 x 14 (number will depend on size of pergola)

• 2 x 2 x 14 (number will depend on size of pergola) w

Deciding on size

The first thing you will need to know is how large do you want your pergola. As I said we will work off a 10 x 10 example. The next question we need to answer is will the post be buried in the ground or attached to the concrete. If possible I suggest putting all four in the ground. We were only able to get two post in the ground.

Measure and mark where all four post will go, they should be 10 feet a part based on our 10 x 10 example.

Setting the posts

We will use a 6 x 6 post and we want the height to be 10 feet.  So for a post anchored to the concrete you will need a 10 foot 6 x 6 and if you are sinking them in the ground you will need a 12 foot 6 x 6.

posts_for_pergola

If you are sinking them in the ground, dig a hole with your post hole diggers and shovel, 2 feet deep. Set the post in the holes and pour in a bag of Quikrete. Soak it with water.  Now take your level and make sure your posts are level. Once they are, brace each one on at least 3 sides with your 2 x 4’s by nailing them to the 6 x 6′s and staking the 2 x 4′s into the ground.

drilling_into_concrete

If you are attaching them to the concrete, first set the ones that will go in the ground, into the ground. Next, place your post anchors where they will go and attach them with some Tapcon screws. You will need to pre-drill the hole with a hammer drill and a masonry bit. If you don’t have a hammer drill, you can use a regular one, but as you are drilling make sure to make a hammering up and down motion to help the drill bit perform better. Next attach the 6 x 6 to the post anchor. This will depend on the type of post anchor you use, so follow the instructions that come with the anchor. Now level the post and brace it with 2 x 4’s.

Adding the end beams

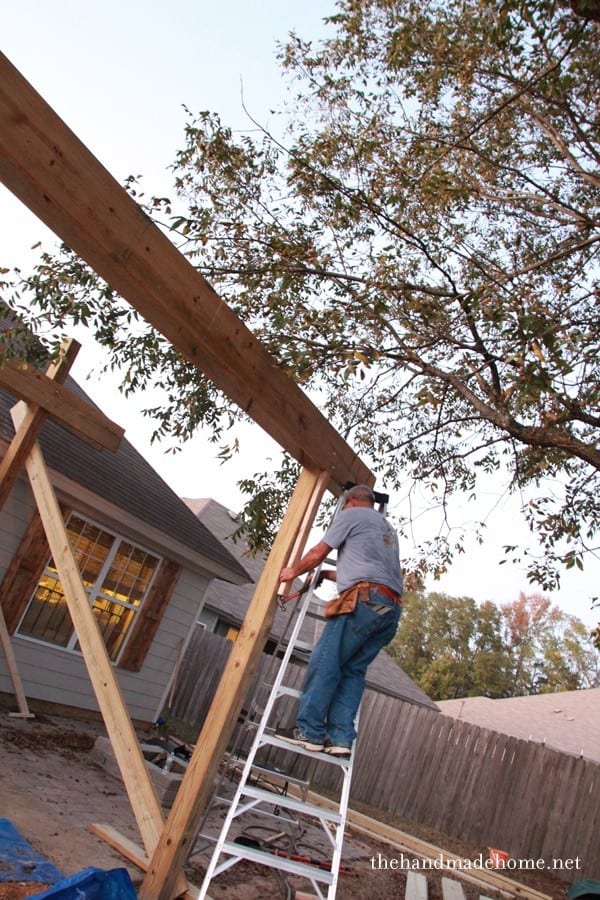

We will add the first layer of beams, the outer beams (or support beams – 2 x 12’s). We will sandwich the 6 x 6 with two 2 x 12 beams. We know we want the overall height of our pergola to be at about 10 feet so we need to have the bottom of our 2 x 12 at 9 feet. Mark each post on both sides at 9 feet. The easiest way to attach the 2 x 12’s is to place a scrap piece of wood at the 9 foot mark and either hammer it in or hold it with a vise. I suggest hammering it in. This piece of scrap wood will give you a brace to support the beam while you attach it to the 6 x 6. Don’t forget to measure to make sure your 2 x 12 is centered.

how_to_build_a_pergola

Once the 2 x 12 is in place drill through the beam and post with a paddle bit and attach the beams to the post with a lag bolt, washer and nut.

pergola

After all four beams are attached to the 6 x 6’s trim any of the 6 x 6 above the 2 x 12’s off with your reciprocating saw.

Adding cross beams

Decide how much space you want in between your cross beams. If you plan on growing Jasmine or another plant on the pergola, I would suggest setting them closer than farther apart. 12 inches is good.  Measure and mark where each beam will go by placing an X. I would also suggest recessing the beam into the 2 x 12. Mark out the area that will need to be cut out to recess the beam. It will need to go 5 ½ inches deep and be 1 ½ inches wide. Cut the 2 x 12 with your reciprocating saw and jig saw.

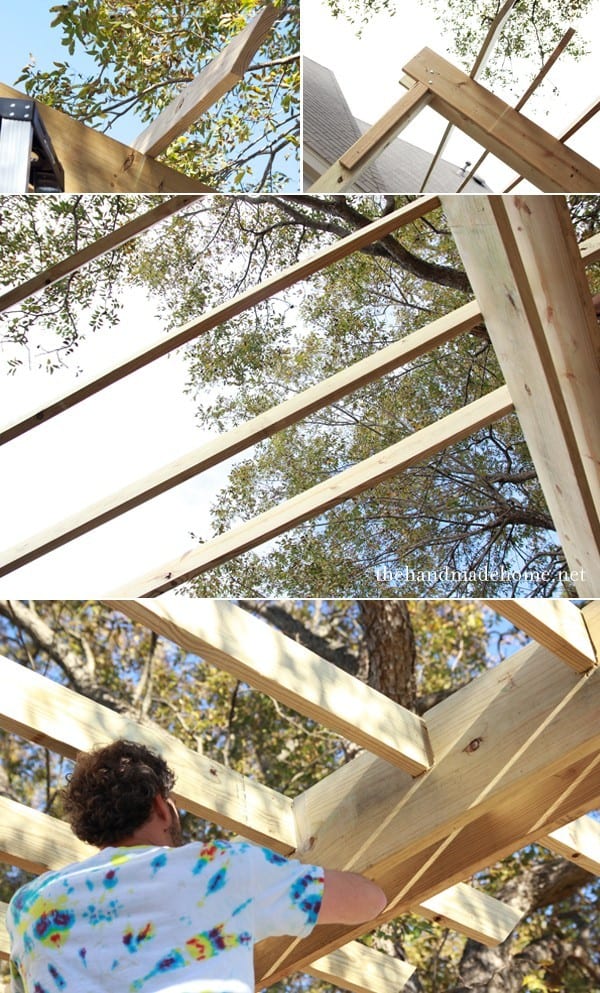

build_a_pergola

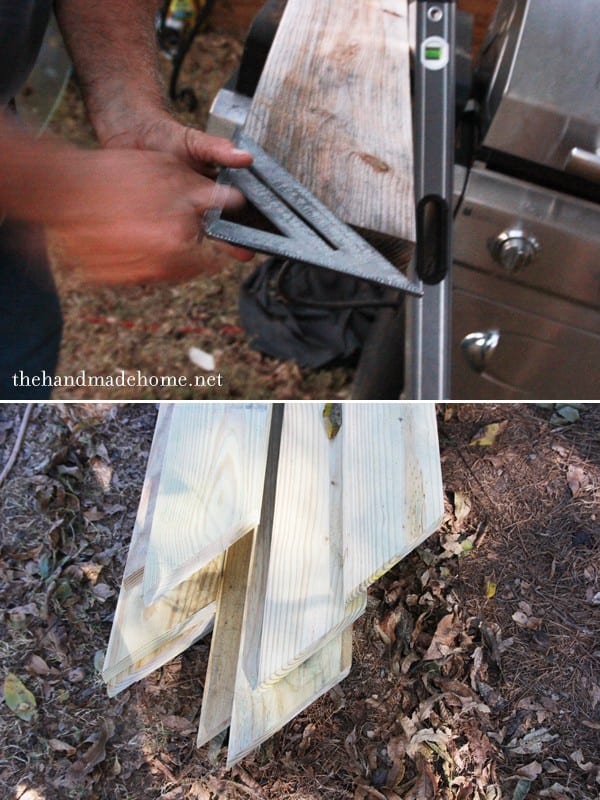

Next decide if you want to put an angle on these beams or leave them flat, we added a 45 degree angle. You can either cut this with a miter saw or use a carpenter square to draw a 45 degree angle and cut it with a skill saw. If you want something a little more ornate then you can use your jig saw to cut the pattern.

how_to_cut_an_angle

diy_pergola

Once your 2 x 12′s are cut out and your 2 x 6′s are cut, place the 2 x 6 in the cut out hole of the 2 x 12. It may take some adjusting, a little extra cutting of the slot and some hammering to get the 2 x 6 in place. Once it is in, nail or screw it in. Repeat this with all the 2 x 6’s.

make_your_own_pergola

Cross supports

Simply cut one end of a 2 x 6 (or bigger, I used a 2 x 10) at a 45 degree angle, at your desired length, for us that was 4 feet in length. Then nail or screw it to each of  the 6×6′s and the inside of one of the 2×12′s. This will add stability to the structure.

Adding the top beams.

Again decide how far a part you would like your 2 x 2’s to be, if you will grow something on your pergola I suggest 12 inches. Mark where all the boards should go and nail or screw them down on top.

Finishing up

If you are painting your pergola you can fill in any holes from your recessed boards with a little wood putty. Otherwise paint, sand or leave the wood as is.

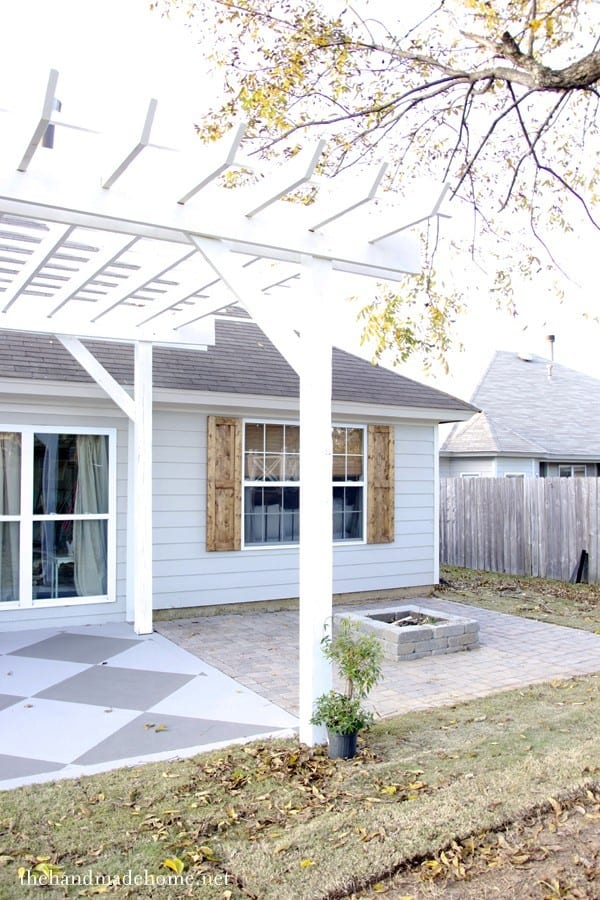

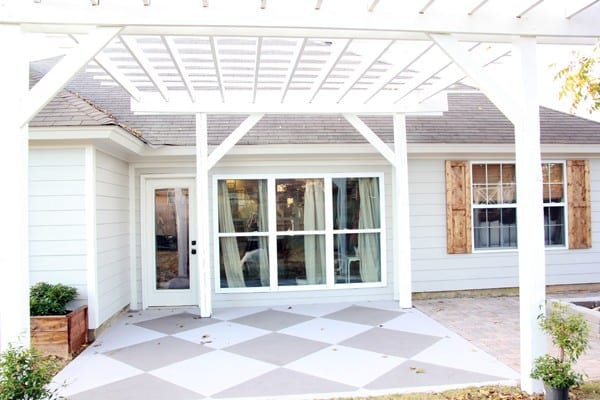

handmade_pergola finished_pergola

Also always protect your outside wood. Thompson Water Seal has a great wood protector.

Now break out the steaks, invite your friends over and enjoy your new pergola!

thompsons-waterseal

This post brought to you in partnership with Thompson’s Water Seal. Read our full disclosure on post sponsorship and safety here.

To read any of our DIY projects from this back yard overhaul, be sure to check them all out, here!
